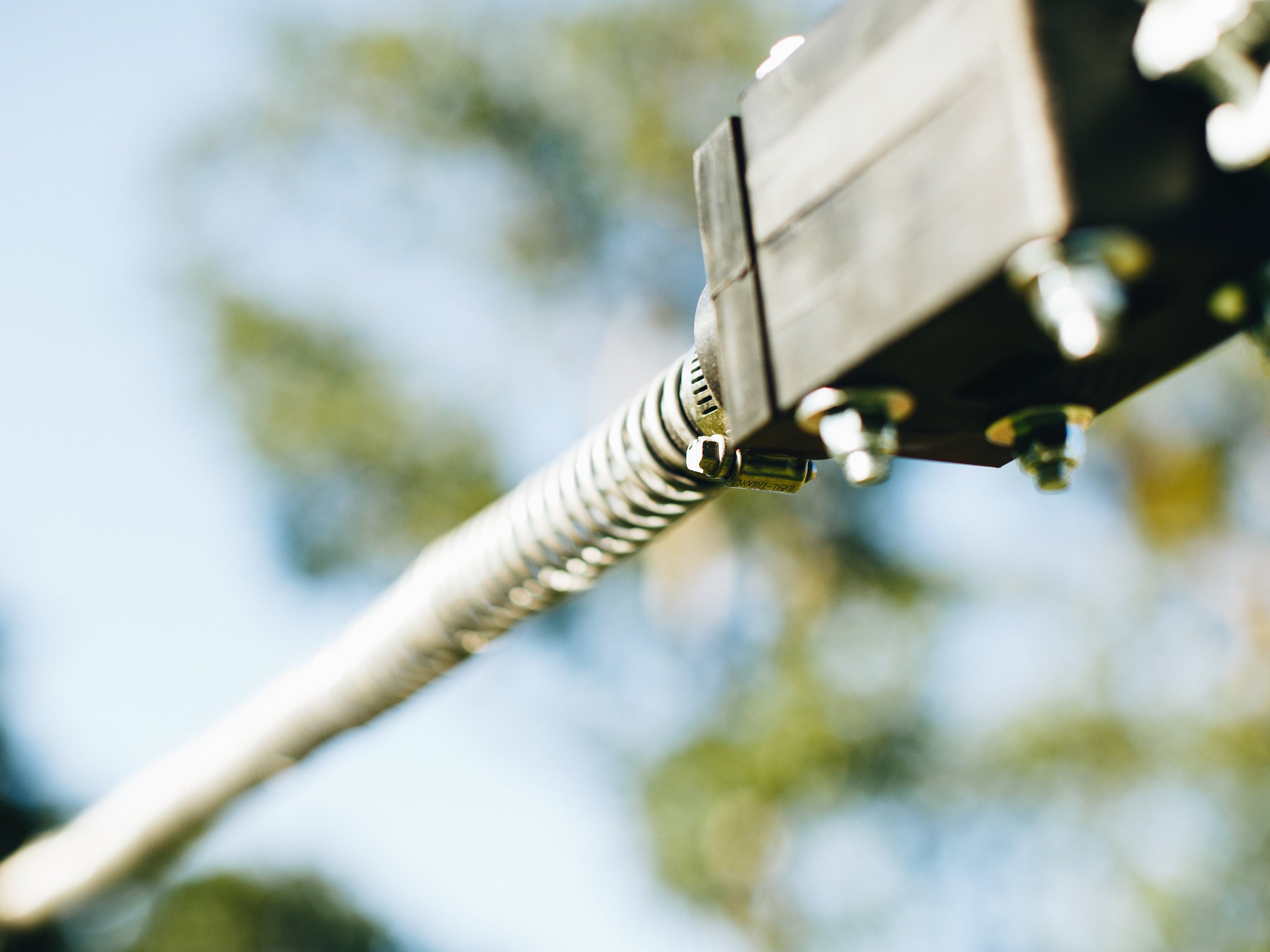

Spring Stop and Stop Block on a Cable

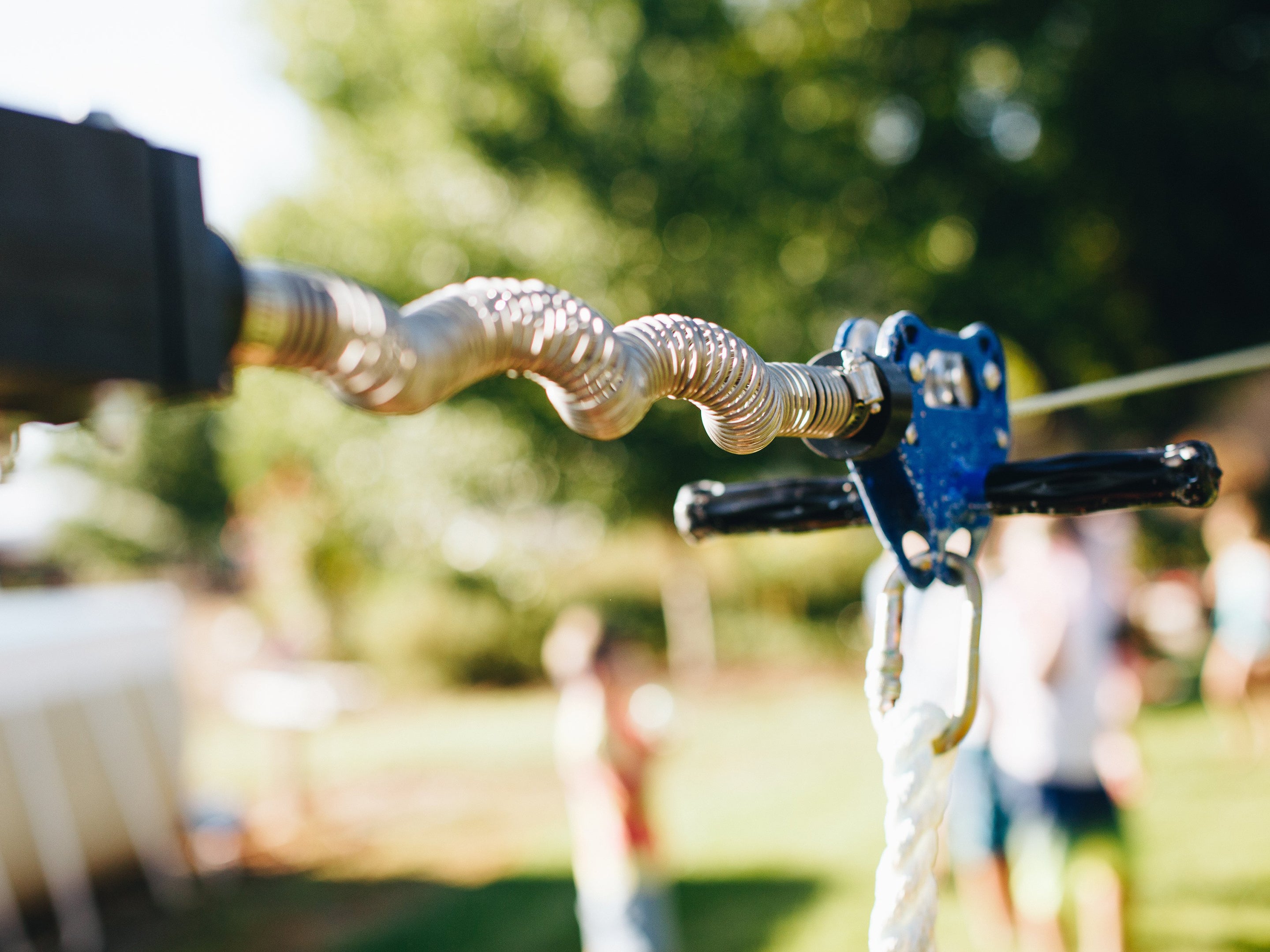

Spring Stop in action

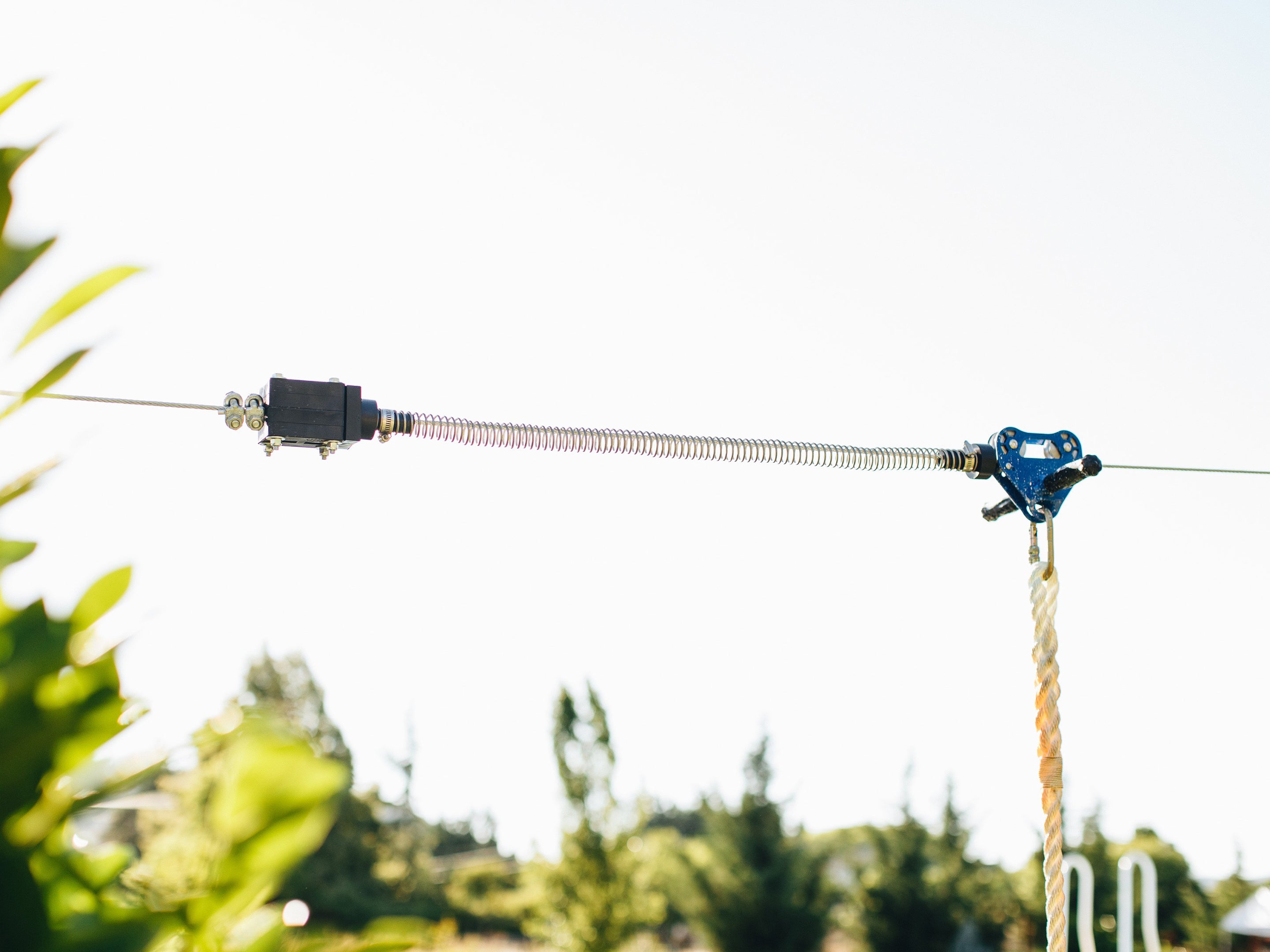

Spring stop in action on a zip line

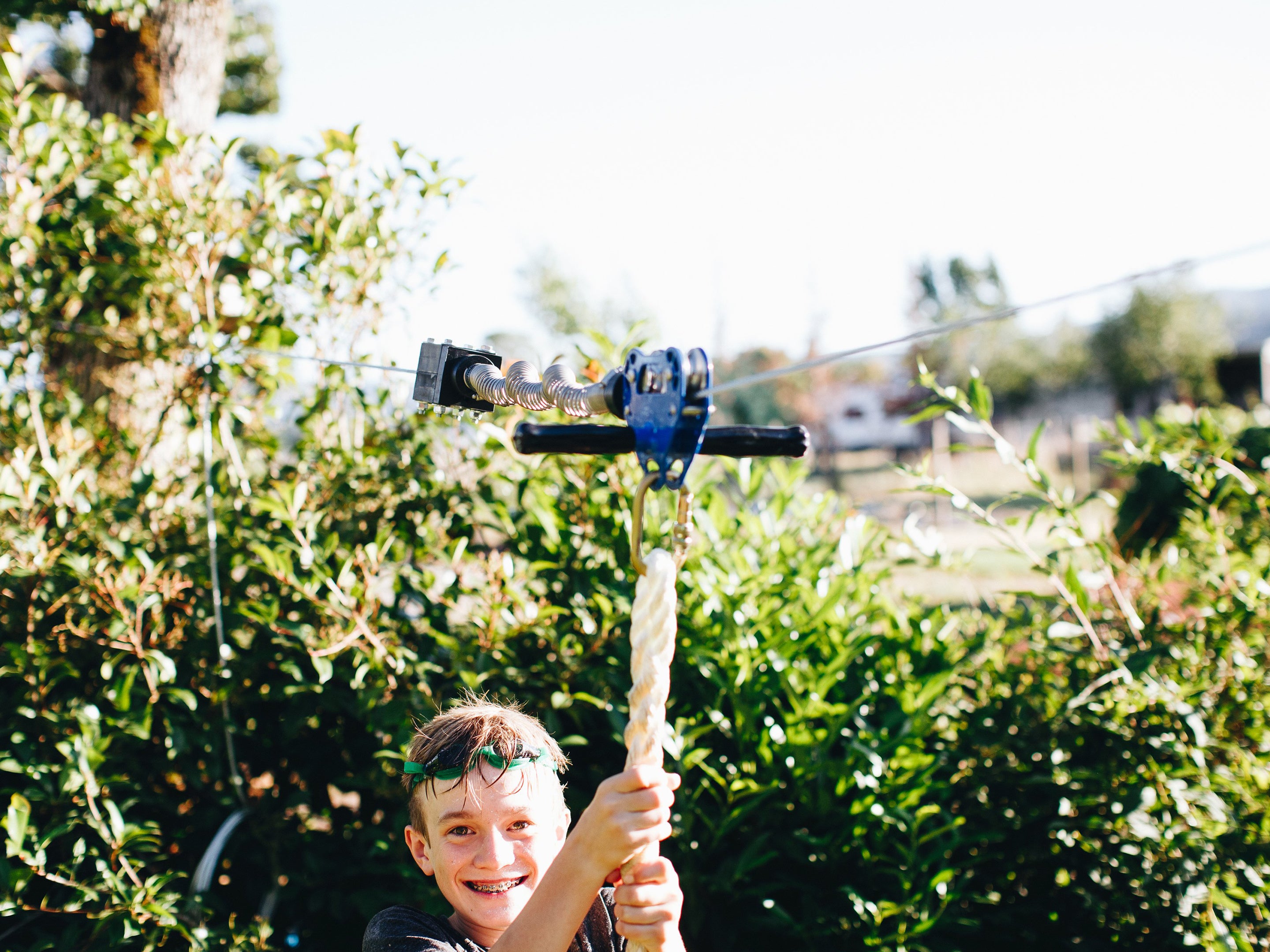

Boy riding a zip line using the spring stop
Spring Stop Zip Line Brake
Spring Stop Zip Line Brake
Spring Stop and Stop Block on a Cable
Spring Stop in action
Spring stop in action on a zip line
Boy riding a zip line using the spring stop

Brake - Spring Stop

Price
$ 45.00
Taxes and shipping calculated at checkout

FREE US Ground Shipping on orders over $300 (up to 150lbs, excludes AK, HI & Freight)

The Spring Stop adds a little bit of cushion to the end of the ride.  It mounts directly to the cable near the Stop Block. When riders zip down the cable, the trolley bumps into the Spring, which cushions the stops.  The maximum amount of slope is 3% (3 ft. drop per 100 ft. of distance) for zip lines that will utilize a Spring Brake.

Note:  Riders should have little to no momentum when coming in contact with the Spring Stop.  For riding slopes greater than 3%, we suggest using the Bungee Brake.

  • Compatible with cable sizes up to 1/2"
  • 3 FT Stainless Steel Spring 1-1/4" in diameter
  • Each end includes UHMW bumpers.

FREE Design consultation

Want to talk with a specialist about your project?

Schedule a free 25 minute consult to help you plan your zip line project. Plus you'll receive a discount code to help with your order!

Schedule A Call

Zip Line University

Explore Our Knowledge Base

Installing a planning a zipline can seem like a daunting project. We're here to demystify the process!

Explore the Knowledge Base

Learn more about zipline installation

FAQ

How do I measure elevation change in my backyard?

Please refer to the manual that comes with your kit for specific installation instructions.

Stand at the end tree and hold a 4 FT Carpenter’s Level like a rifle.  Holding one end up to your eye, point the opposite end at the base of the starting tree, right where the dirt and tree meet. Make sure the bubble is between the two hashes indicating level (crouch down if your yard has a minimal slope or climb a ladder if your yard has lots of slope).

Once you have the level aiming at the base of the starting tree, measure from the Carpenter’s Level down to the ground.  This measurement is your natural elevation change.

If you have questions, please do not hesitate to give us a call at 888-476-3701

How do I figure out the slope for my zip line?

Please refer to the manual that comes with your kit for specific installation instructions.

The slope determines the speed of the zip line. Essentially this is the angle you set the cable at between the two trees. The slope is calculated by multiplying the distance between your trees times .03 or 3%.

More details on Slope can be found in the Zip Line Gear handbook included with your purchase. You can also view a digital version of the “Cable Slope & Sag” right here. We recommend finding a landscape with a natural slope of 3% to 6%, This is a 3’ - 6’ foot drop per 100’ feet.

For zip lines that will NOT utilize a Bungee Brake System, (a Stop Block is NOT a braking system) the maximum allowable slope is 3%. For zip line setups that include a Bungee Brake, the maximum allowable slope is 6%.

!!WARNING!! Zip line must never exceed 6% (6’ foot drop per 100’ feet) riding slope. High speed collision with end point may cause injury or death.

I don't have trees. Can I use posts?

Yes you can, but you need to carefully read the instructions for how to select, and install posts in the Backyard Zip Lines handbook included with your purchase. Alternatively, you can review the information in the digital version of our handbook right here.

If you are in any doubt as to how to properly select and install a wood post, please do not hesitate to contact us at 888-476-3701.
