Bungee Brake Kit

Price
$ 115.00
Taxes and shipping calculated at checkout
Bungee Brake:
20 Foot

FREE US Ground Shipping on orders over $300 (up to 150lbs, excludes AK, HI & Freight)

Our preferred zip line braking method is the Bungee Brake, bringing riders to a smooth and gentle stop. This type of brake is considered a passive braking system and not dependent upon the rider at all.

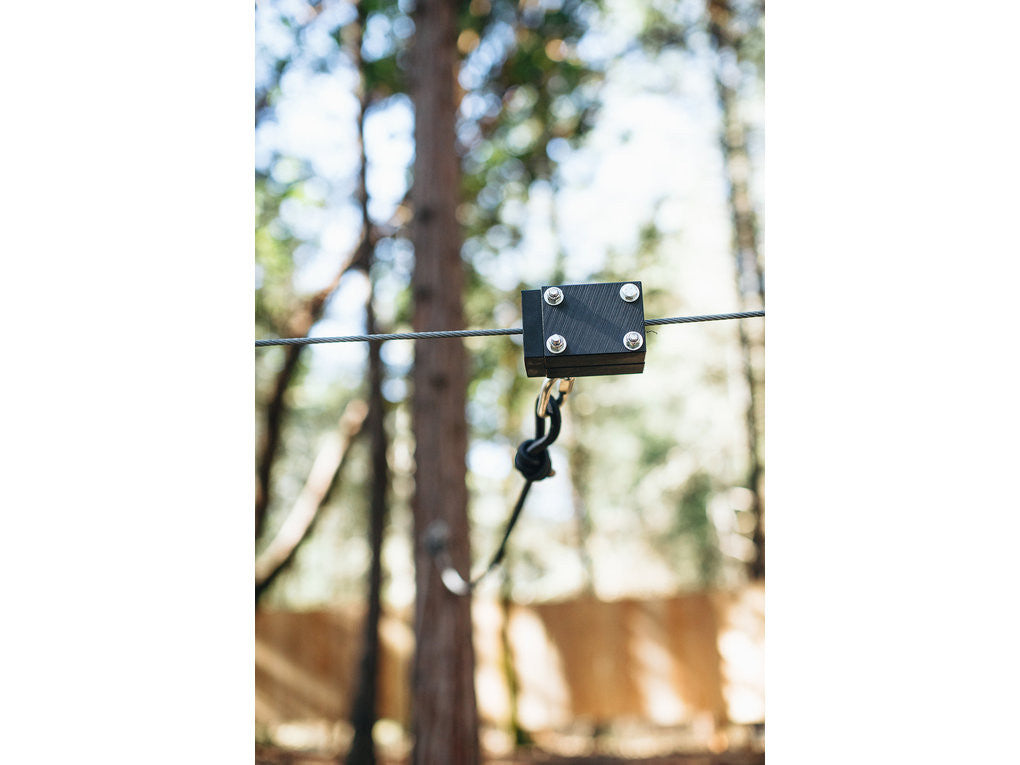

The mounted block on the zip line cable is made to slide freely.  Attached to the block is a bungee cord.  When the rider zips down the cable, near the 3/4 mark, the rider's trolley bumps into the block, as the rider continues travel, the bungee cord stretches and slows the rider down until they stop.  The bungee cord retracts and the riders slide backwards on the cable until they reach the lowest point of the zip line.

Note: The maximum allowable slope is 6% (6 ft. drop per 100 ft. of distance) for zip lines that utilize a Bungee Brake.

20 FT BUNGEE BRAKE KIT For zip lines up to 200 FT long.
30 FT BUNGEE BRAKE KIT For zip lines between 200-500 FT long.

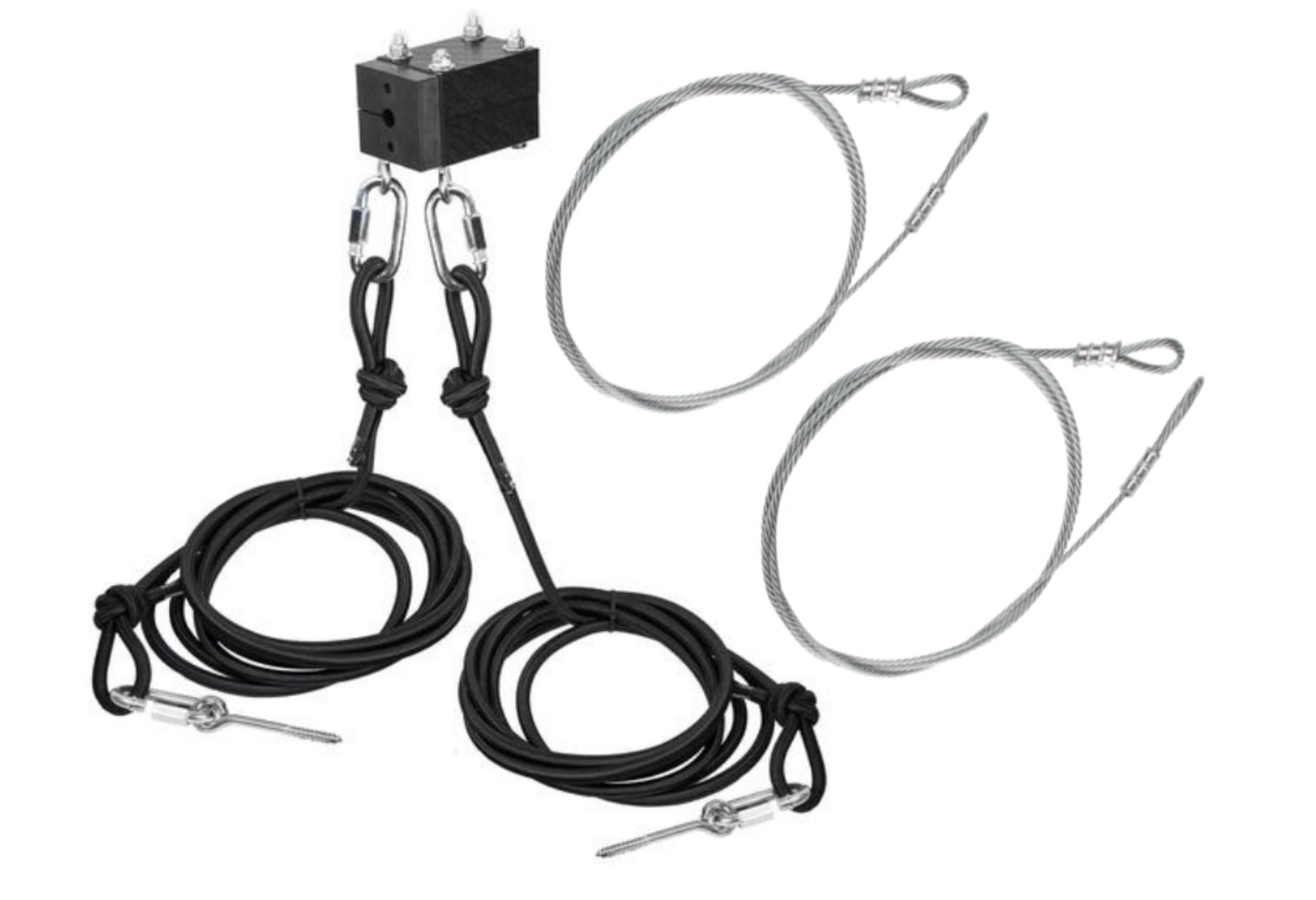

DOUBLE 30 FT BUNGEE BRAKE SYSTEM Includes two lengths of bungee cord.  Used for special situations where more braking force is needed.

Not only do you get the Bungee Brake, but you get the very best customer service in all the land.

If you're not happy, send it back for a full refund within one year.

  • Nylon Block works with cable up to 1/2" in diameter
  • Rubber impact bumper
  • 1/2" Heavy-Duty Bungee Cord
  • Hardware included: Bolts, Eye-Bolt, Eye-Lag Screw and Quick-Links
  • Cable back-up sling for Bungee Anchor Eye-Lag screw

FREE Design consultation

Want to talk with a specialist about your project?

Schedule a free 25 minute consult to help you plan your zip line project. Plus you'll receive a discount code to help with your order!

Zip Line University

Explore Our Knowledge Base

Installing a planning a zipline can seem like a daunting project. We're here to demystify the process!

Learn more about zipline installation

FAQ

How do I measure elevation change in my backyard?

Please refer to the manual that comes with your kit for specific installation instructions.

Stand at the end tree and hold a 4 FT Carpenter’s Level like a rifle.  Holding one end up to your eye, point the opposite end at the base of the starting tree, right where the dirt and tree meet. Make sure the bubble is between the two hashes indicating level (crouch down if your yard has a minimal slope or climb a ladder if your yard has lots of slope).

Once you have the level aiming at the base of the starting tree, measure from the Carpenter’s Level down to the ground.  This measurement is your natural elevation change.

If you have questions, please do not hesitate to give us a call at 888-476-3701

How do I figure out the slope for my zip line?

Please refer to the manual that comes with your kit for specific installation instructions.

The slope determines the speed of the zip line. Essentially this is the angle you set the cable at between the two trees. The slope is calculated by multiplying the distance between your trees times .03 or 3%.

More details on Slope can be found in the Zip Line Gear handbook included with your purchase. You can also view a digital version of the “Cable Slope & Sag” right here. We recommend finding a landscape with a natural slope of 3% to 6%, This is a 3’ - 6’ foot drop per 100’ feet.

For zip lines that will NOT utilize a Bungee Brake System, (a Stop Block is NOT a braking system) the maximum allowable slope is 3%. For zip line setups that include a Bungee Brake, the maximum allowable slope is 6%.

!!WARNING!! Zip line must never exceed 6% (6’ foot drop per 100’ feet) riding slope. High speed collision with end point may cause injury or death.

I don't have trees. Can I use posts?

Yes you can, but you need to carefully read the instructions for how to select, and install posts in the Backyard Zip Lines handbook included with your purchase. Alternatively, you can review the information in the digital version of our handbook right here.

If you are in any doubt as to how to properly select and install a wood post, please do not hesitate to contact us at 888-476-3701.
