Splash Zip Line Kit

Price
$ 260.00
Taxes and shipping calculated at checkout
Length:
75 FT

FREE US Ground Shipping on orders over $300 (up to 150lbs, excludes AK, HI & Freight)

Adventurers have been making a splash with these components for years and we decided it was time to take the plunge and make this into a kit.

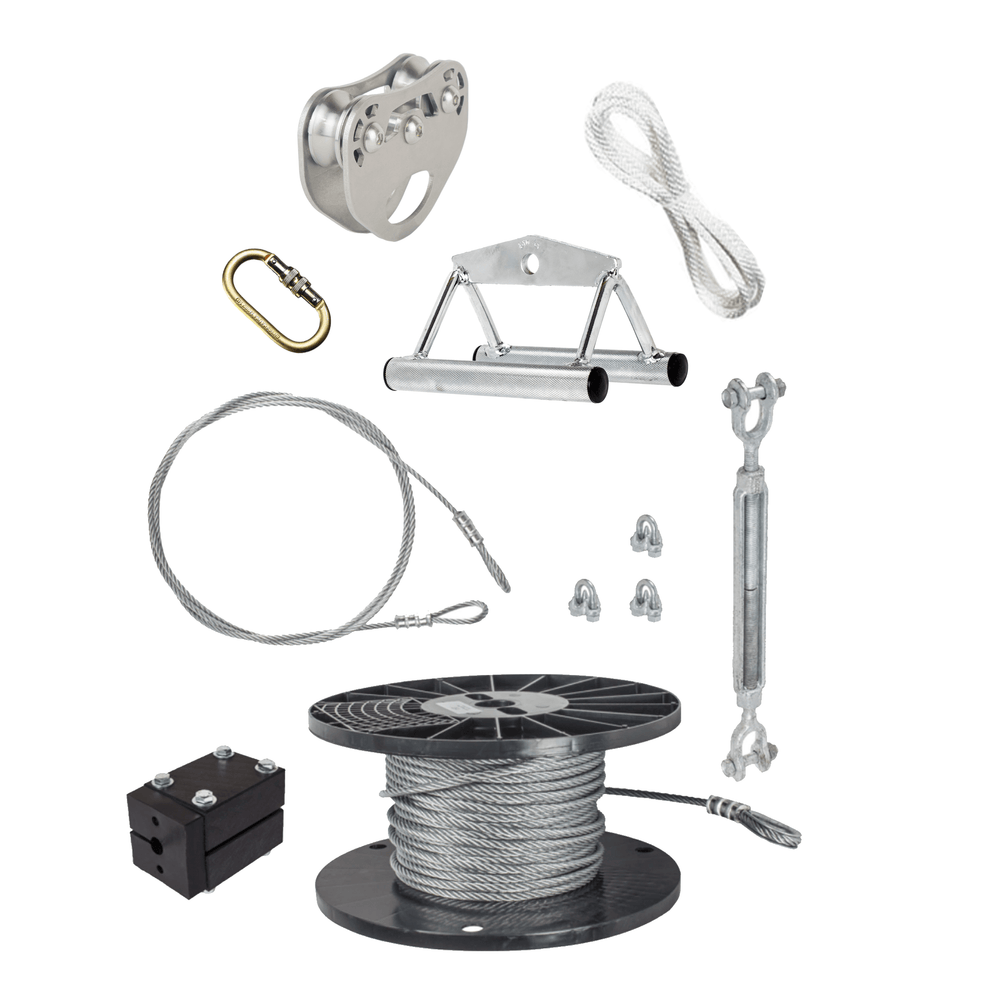

The Splash Kit comes with quality components that include Cable, Hardware, Trolley, Carabiner, Dual Handlebars, safety Stop Block and Tag Line to return the trolley to the start after the ride is over.

Not only do you get the zip line kit, but you get the best customer service when you have questions.

If you're not happy, send it back for a full refund within one year.

  • 1/4" Cable comes with 8 FT Cable Sling, Turnbuckle & Clamps. Kits come with 10' of extra cable, so that you have plenty to work with. Give a shout if you need a custom length of cable or a larger cable sling.
  • Osprey Trolley with durable stainless steel side plates and dual ball bearing wheels.
  • Dual Handlebars with Steel Locking Carabiner to connect to Trolley eyelet.
  • Safety Stop Block creates a no pass point (not a brake).
  • 15' tow rope.

SETUP: A clear runway between two trees or poles is required, preferably one where landscape slopes.  An end-to-end slope of 3%. For example, a 100' zip line would drop about 3 FT.

INSTALLATION: Grab a Tensioning Kit to take the strain out setting up your cable, especially any length of cable over 150 FT.

Kit Installation Guide

FREE Design consultation

Want to talk with a specialist about your project?

Schedule a free 25 minute consult to help you plan your zip line project. Plus you'll receive a discount code to help with your order!

Zip Line University

Explore Our Knowledge Base

Installing a planning a zipline can seem like a daunting project. We're here to demystify the process!

Learn more about zip line installation

FAQ

How do I measure elevation change in my backyard?

Please refer to the manual that comes with your kit for specific installation instructions.

Stand at the end tree and hold a 4 FT Carpenter’s Level like a rifle.  Holding one end up to your eye, point the opposite end at the base of the starting tree, right where the dirt and tree meet. Make sure the bubble is between the two hashes indicating level (crouch down if your yard has a minimal slope or climb a ladder if your yard has lots of slope).

Once you have the level aiming at the base of the starting tree, measure from the Carpenter’s Level down to the ground.  This measurement is your natural elevation change.

If you have questions, please do not hesitate to give us a call at 888-476-3701

How do I figure out the slope for my zip line?

Please refer to the manual that comes with your kit for specific installation instructions.

The slope determines the speed of the zip line. Essentially this is the angle you set the cable at between the two trees. The slope is calculated by multiplying the distance between your trees times .03 or 3%.

More details on Slope can be found in the Zip Line Gear handbook included with your purchase. You can also view a digital version of the “Cable Slope & Sag” right here. We recommend finding a landscape with a natural slope of 3% to 6%, This is a 3’ - 6’ foot drop per 100’ feet.

For zip lines that will NOT utilize a Bungee Brake System, (a Stop Block is NOT a braking system) the maximum allowable slope is 3%. For zip line setups that include a Bungee Brake, the maximum allowable slope is 6%.

!!WARNING!! Zip line must never exceed 6% (6’ foot drop per 100’ feet) riding slope. High speed collision with end point may cause injury or death.

I don't have trees. Can I use posts?

Yes you can, but you need to carefully read the instructions for how to select, and install posts in the Backyard Zip Lines handbook included with your purchase. Alternatively, you can review the information in the digital version of our handbook right here.

If you are in any doubt as to how to properly select and install a wood post, please do not hesitate to contact us at 888-476-3701.
